The GALAXY 5500e Digital is BindEx's latest intelligent perfect binder developed specifically for digital finishing. Equipped with 13 clamps and a maximum mechanical speed of 5,500 books/hour, it features fully servo-driven format adjustment.

Combining the fast and flexible format changeover of compact digital perfect binders with the production speed of mid-range perfect binders, the GALAXY 5500e Digital provides an efficient solution for short- and medium-run production.

Key Features

1. Heavy-Duty Industrial Design

Combines flexible format changeover with the demanding requirements of modern book production quality.

2. Servo Technology

Ensures precise and reliable format adjustment.

3. 18 Servo Adjustment Points

Enables fast and efficient format changeover.

4. Automatic Vertical Cover Feeding System

Provides continuous cover feeding without stopping the machine. Equipped with missing-cover and double-sheet detection.

5. Vibrating Book Block Feeding Channel

The feeding channel is equipped with a vibration function to align book blocks during conveying.

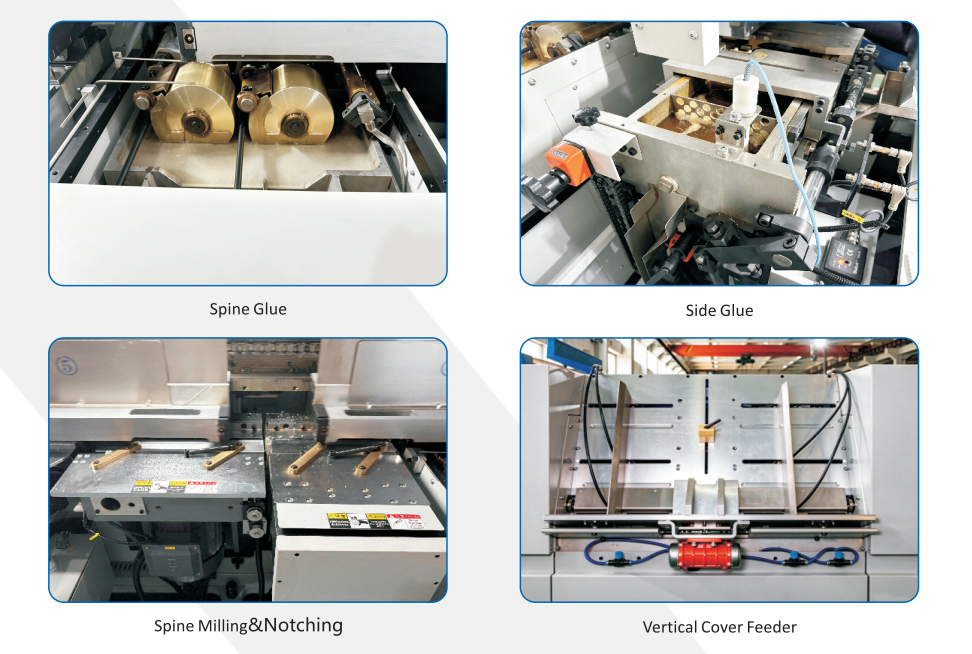

6. Independent Spine Milling and Notching Station

The spine milling cutter can be configured with either a paper-strip cutter or paper-dust cutter according to production requirements. Servo-driven notching allows flexible adjustment of the notch spacing.

7. Spine Glue System

Equipped with a dual-roller spine glue pot for two-pass spine glue application, ensuring consistent and reliable glue coverage. Pneumatic glue cut-off allows convenient adjustment.

The main spine glue pot features a circulating glue system with precise temperature control, ensuring stable glue application. The glue roller height, glue leveling bar height and glue volume can be precisely adjusted via digital controls. The system also features an integrated preheating function.

8. Side Glue System

Equipped with a pneumatic glue cut-off mechanism. The floor-standing preheating glue unit provides automatic glue replenishment.

9. Dual-Cam Nipping Mechanism

During nipping, the platform moves parallel to the book block, ensuring firm and uniform spine compression.

10. Book Turnover Delivery

Books are turned over during delivery to help prevent deformation.

Optional Features

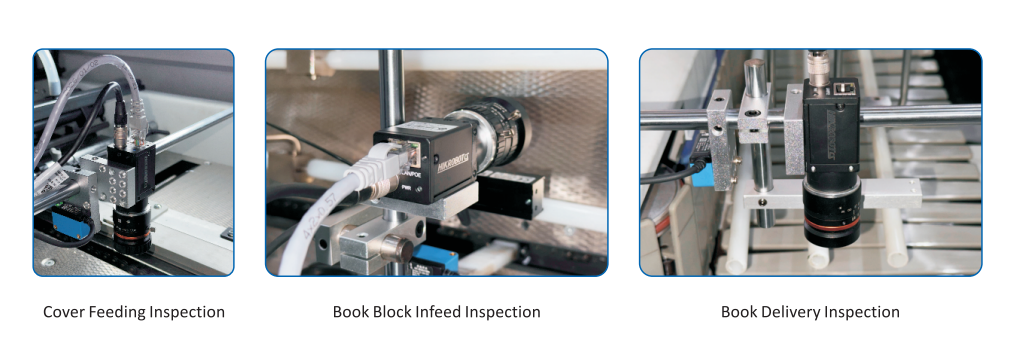

1. Vision Inspection System

Inspection points are available at the book block feeding, cover feeding and book delivery sections.

Book block and cover matching

Mistake-proofing to prevent incorrect book blocks and covers from being mixed

2. Automatic Format Changeover System

A handheld barcode reader identifies the barcode on the book block and automatically retrieves the book size for automatic format changeover.

3. BindEx Smart Factory Dashboard for On-Demand Printing

4. Dual Nipping Unit

5. Second Spine Glue Pot

6. Shingled Cover Feeding Table

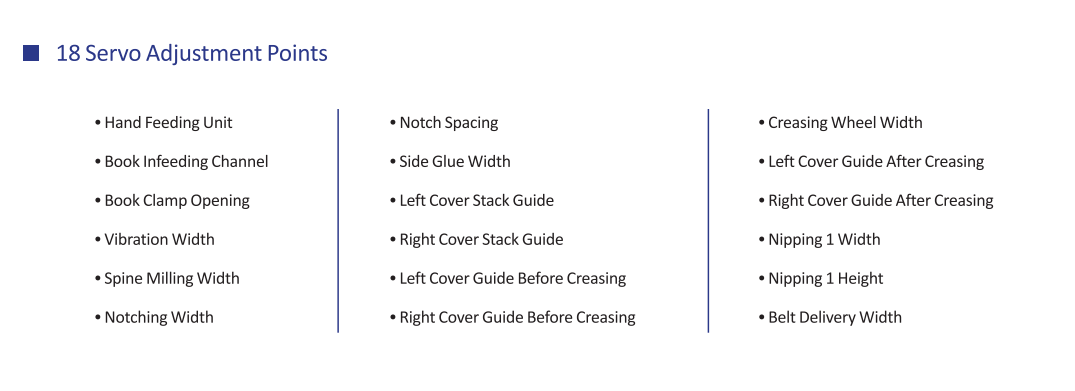

GALAXY 5500e Digital Servo Adjustment Points
