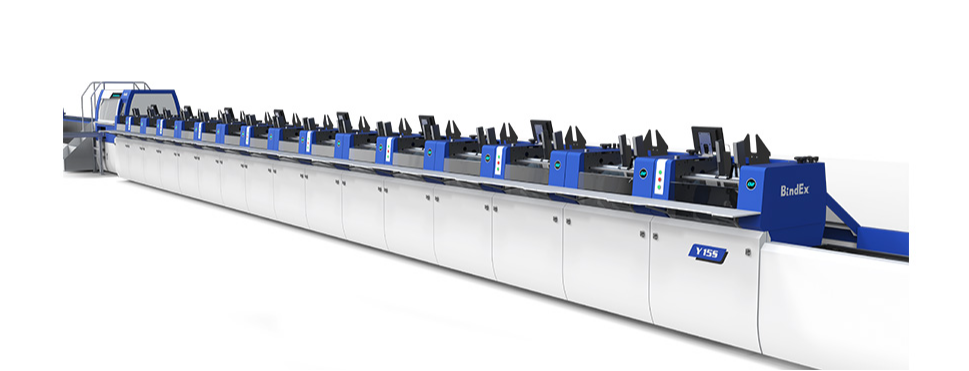

The Y15S High-Speed Gathering Machine is a newly developed and designed machine by BindEx Machinery, featuring advanced performance. It uses a fully shaftless independent drive system and operates in a 1:1 working mode. An optional booklet image detection system can be installed for real-time quality monitoring, effectively ensuring high production yield. The maximum mechanical speed reaches up to 15,000 c/h.
Features:
1. Shaftless independent drive reduces wear by eliminating unnecessary rotation

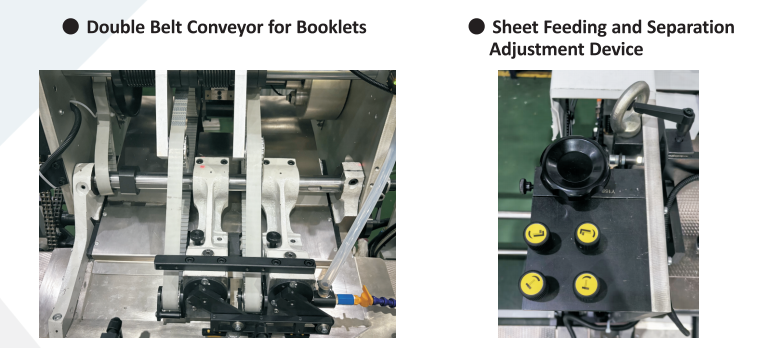

2. Double belt conveyor ensures high-speed stability
3. Standard vertical booklet pressing device enhances booklet transport reliability
4. Handwheel adjustment for booklet size, and convenient adjustment of the sheet feeding and separation devices
5. Electronic thickness measurement for quick, accurate format changes
6. Optional booklet image detection system, seamlessly integrated with the gathering machine.
| Gathering Stations | stations | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 |
| Maximum Gathering Size (L×W) | mm | 450×300 | 450×300 | 450×300 | 450×300 | 450×300 | 450×300 | 450×300 | 450×300 |
| Minimum Gathering Size (L×W) | mm | 140×140 | 140×140 | 140×140 | 140×140 | 140×140 | 140×140 | 140×140 | 140×140 |
| Maximum Mechanical Speed | signatures/hour | 12000 | 12000 | 12000 | 12000 | 12000 | 12000 | 12000 | 12000 |
| Main Power | kw | 25.55 | 27.55 | 29.55 | 39.05 | 41.05 | 43.05 | 45.05 | 47.655 |
| Net weight | t | 6.3 | 7.6 | 8.9 | 10.2 | 11.5 | 12.8 | 14.1 | 15.4 |
| Overall dimensions (LxWxH) | m | 13.0×1.2×1.3 | 14.8×1.2×1.3 | 16.6×1.2×1.3 | 18.4×1.2×1.3 | 20.2×1.2×1.3 | 22.0×1.2×1.3 | 23.8×1.2×1.3 | 25.6×1.2×1.3 |
